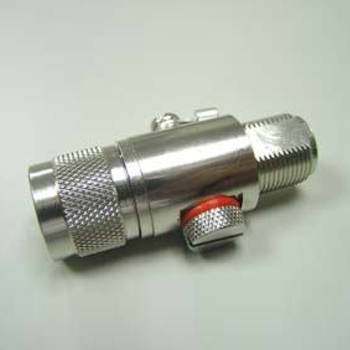

LA-100
Outdoor Antenna Dedicated Lightning Arrester
Inquiry
/
PDF
Download
/
Product Description
Outdoor Antenna Dedicated Lightning Arrester
300K~3Ghz or 6GMhz
Product Specifications
Impedance: 50 0hms
Frequency Range: DC-3 Ghz

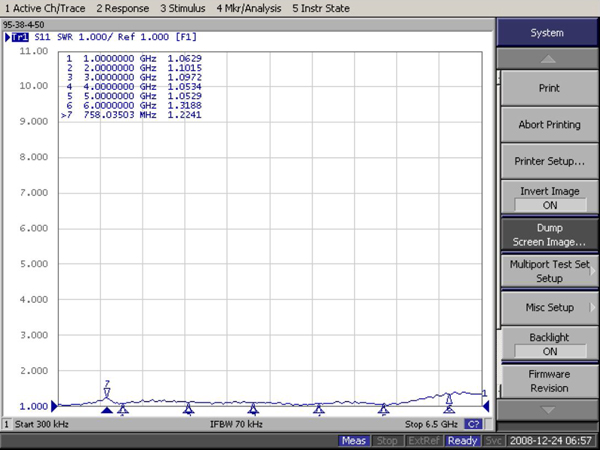

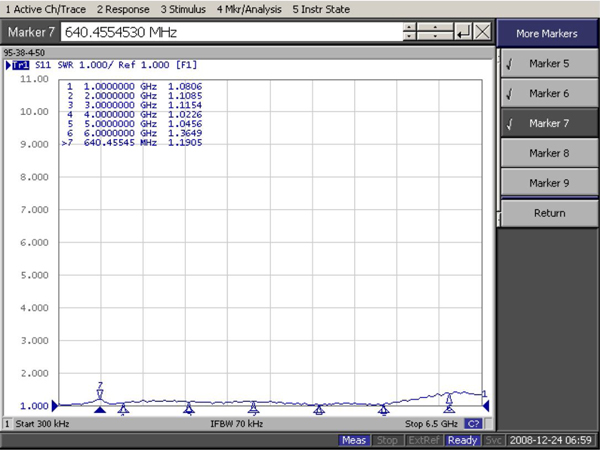

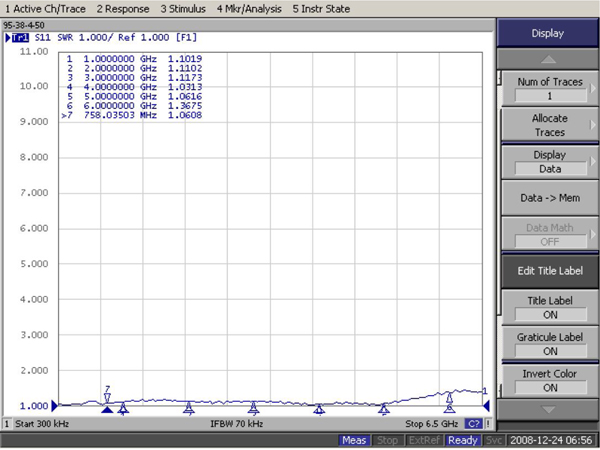

V.S.W.R: DC-3 Ghz < 1.5
Return Loss: DC-3 Ghz < -1.4dB
Insertion Loss: ≤ 0.8 dB
DC Spark Over Voltage 100V/S: 184~276V
Insulation Resistance: ≥ 2000 Megohms
Cas Tube Insulation Resistance At 100Vdc: ≥ 10 GΩ
Impulse Spark-over Volatge [Kv/μ]: 450V
Alternative Discharge Current: 10KA (wave 8/20μs) 10 Times (5 Times Each Polarity)
Capacitance 1MHz Pƒ: < 2
DC Holdover Voltage per ITU-T.K. 12: 135V
The Gas Tube Can Be Changed.
Working Terperature: -40°C ~ +85°C

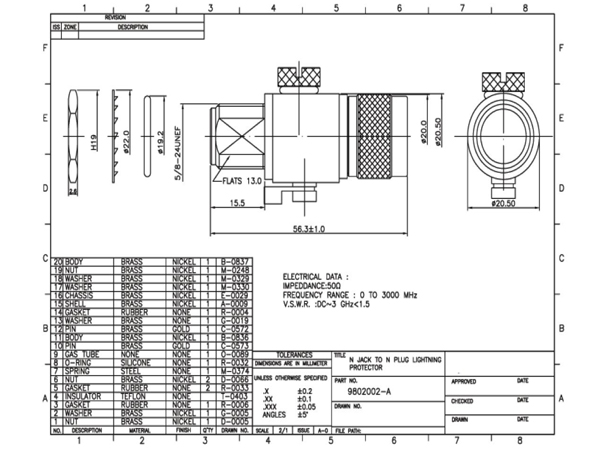

Dimension (W*L*H): 20.5 × 56.3 × 25.7
Weight: 87.5g
