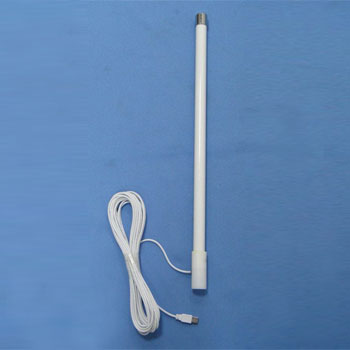

WA-100

Built-in High Power IEEE 802.11 b/g/n WiFi Module & high Gain Antenna

IEEE 802.11n, 1T1R, 150Mbps

• This high power WLAN module supporting IEEE 802.11 b/g/n standards, its flexible DATA and RF interface design allows it can be used in many different applications which a further wireless connection is required.
• This low cost compact WLAN module is designed for the wireless connectivity of products with embedded system. It operates in 2.4GHz ISM frequency band, applies a highly integrated MAC/BBP and RF single chip RT3070 with 150Mbps PHY rate supporting.

• 802.11b: 1, 2, 5.5, 11Mbps;
• 802.11g: 6, 9, 12, 18，24, 36, 48, 54Mbps
• 802.11n: (20MHz) MCS0-7, Support up to 72Mbps
• (40MHz) MCS0-7, Support up to 150Mbps
• OFDM, Peak rate 150Mbps, Peak throughput 90Mbps.
• Security support for 64/128 WEP, WPA, WPA2, TKIP, AES

• Standards : IEEE802.11b/g & 802.11n (1T1R mode)
• Operating Frequency : 2.412GHz ~ 2.4835GHz , ISM band
• Protocols 802.11b : CCK, QPSK, BPSK, 802.11g/n: OFDM
• Antenna : internal 50 ohm 7db antenna
• Security : 64/128 WEP, WPA, WPA2, TKIP, AES
• Transmit Output Power (Typical on board) : 11b : 26±1.0dBm @ 11Mbps , 11g : 23±1dBm @ 54Mbps
• 802.11n: (HT20), 22+/-1dBm, 802.11n: (HT40), 21+/-1dBm,
• Receive Sensitivity (Typical) : 11b: -88dBm @ 11Mbps; 11g: -76dBm @ 54Mpbs.
• 802.11n: (HT20), -75dBm@MSC7, (HT40),-73dBm@MSC7
• Operating Voltage : 5.0VDV± 5%
• Operating Current : <320mA
• USB Interface : USB 2.0/USB1.1
• Cable : 10M UL2725 28AWG white+UV
• Antenna Base : Pole mount to 1"-14 UNS threaded mast
• Operating Temperature: -40oC~ +85oC.
• Storage Temperature: -40oC~ +85oC.
• Water Resistance: 100% waterproof.
• Antenna Size : OD23.85 x 590mm (+/-30mm)
