MA-620PL
 |
|
High Gain gps antenna 3V:38db/5V:45db
Small size and ruggedness, demand of vehicle locating and car navigation GPS antenna that will sustain harsh environment.
- Low noise figure
- Fully weather proof.
- Ultra-high Sensitivity
- Compact construction
- Excellent temperature stability
- FB3A SUS L-Mounting 1"-14 UNS
The antenna system MA-620PL is the integration of the high performance GPS patch antenna and a low noise amplifier into state-of-the-art low a very low profile/extremely compact/fully waterproof antenna signal enclosure. When connected to a GPS receiver with +2.5~ 5.5V DC antenna powers it provides excellent signal amplification and out-band-rejection for that receiver.

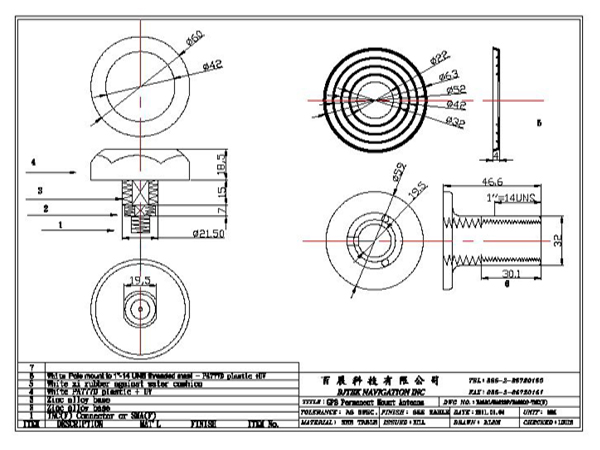

| Antenna Element | |
|---|---|
| Center Frequency | 1575.42 MHz +/-1.023 MHz |
| Polarization | R.H.C.P. (Right Handed Circular Polarization) |
| Absolute Gain @ Zenith | +5 dBi typicalBased on 70×70mm ground plane |
| Gain @ 10° Elevation | -1 dBi typical |
| Axial Ratio | 3 dB max. |
| Output VSWR | 1.5:1 Typ. |
| Output Impedance | 50 ohm |
| Low Noise Amplifier | |
| Center Frequency | 1575.42 MHz +/- 1.023 MHz |
| Power Gain | 38db(3V) / 45db(5V)(Without cable +25℃±10℃) |
| Bandwidth | 10 MHz min. |
| Noise Figure | 1.6 Typ. |
| Outer Band Attenuation | 20 dB min. @ Fo +/-50 MHz |
| Supply Voltages | 3.0~5.0V DC |
| Current Consumption | 21mA@ 3.0V DC,25mA@ 5.0V DC |
| VSWR | 1.5 max. |
| Output Impedance | 50 ohm |
| Overall Performance: (antenna element, LNA & coax cable) | |
| Center Frequency | 1575.42 MHz |
| Gain | 38db(3V) / 45db(5V)(Without cable +25℃±10℃) |
| Noise Figure | 2.0 max. |
| Bandwidth | 10 MHz min. |
| Axial Ratio | 3 dB max. |
| VSWR | 1.5 max. |
| Output Impedance | 50 ohm |
| Environmental Conditions | |
| Operating Temperature | -30°C to +80°C |
| Storage Temperature | -40°C to +100°C |
| Relative Humidity | 40% to 95% non-condensing |
| Water Resistance | 100% waterproof |
| Physical Constructions | |
| Dimensions | Antenna： 60mm(Dia.) × 70mm(H) |
| Weight | 200 grams (without cable) |

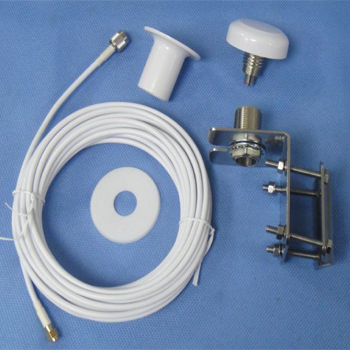

| Standard Mounting | Bulkhead mount with 0.8 inch threaded wing nut (standard accessory). |

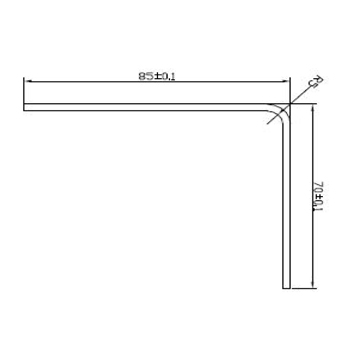

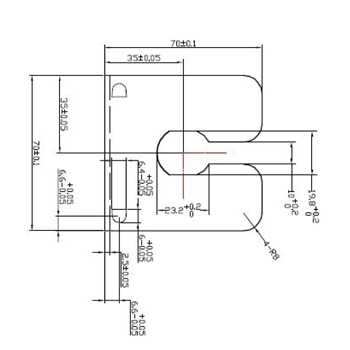

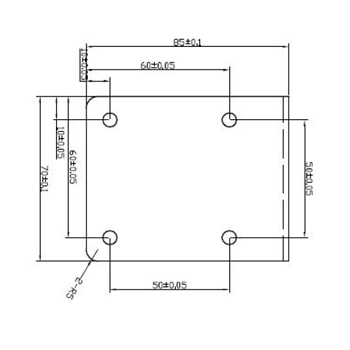

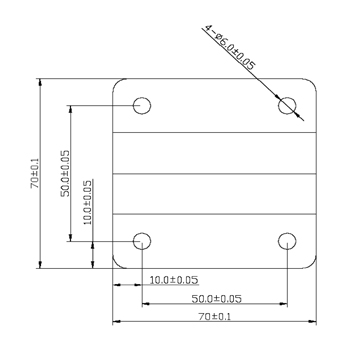

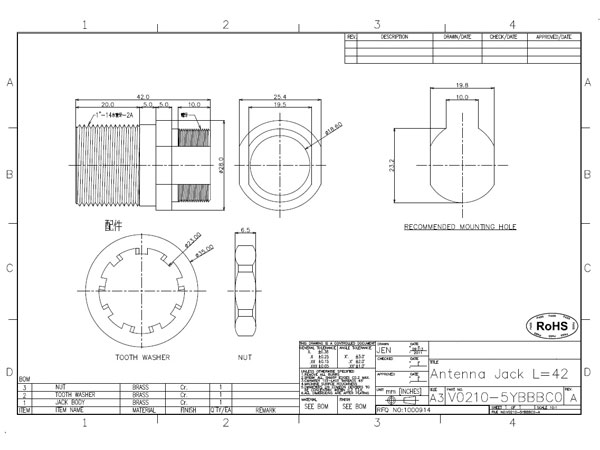

| Mounting Adapters | Pole mount to 1"-14 UNS threaded mast |

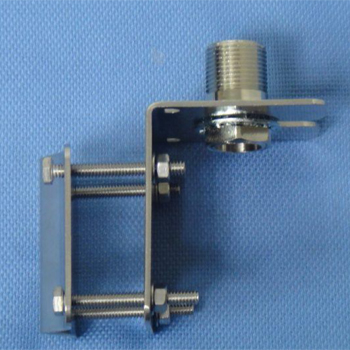

| Base mounting | FB3A SUS L-MOUNTING 1"-14 UNS |
| Cable & Connector | |
| RF Connector |
SMA(F) or TNC(F) |
| Cable Pulling strength | 6 Kg @ 5sec. molded plastic on connector end for strain relief. |
*This specification is subject to change without prior notice / Data Updated: NOV 01, 2012
.

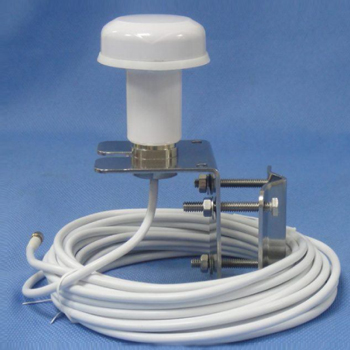

Marine Antenna Base mounting: FB-3A
1"-14 UNS threaded mast SUS304/C3604
Locks on the truck rear-view mirror or on iron stand or flagpole
