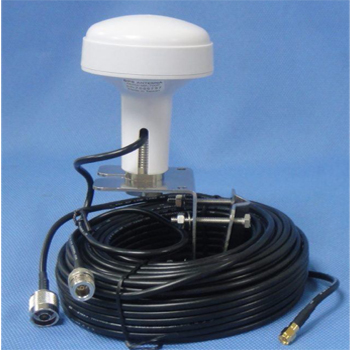

MA-700PL
 |
|
High Gain gps antenna 38 ~ 45db
GPS Antenna： 90.8mm(Dia) × 109mm(H)
MA700PL is designed for the Marine Vessels mast or tall buildings that require long extra cables without signal constraint to the GPS receivers. MA700PL is not only hidden in a durable and waterproof cover, but also cable is protected by a base which can prevent damage. The special design for MA700PL is really delicate, compact and reliable. Besides that have concinnity and compacted design for base. It is the integration of the high performance GPS patch antenna and a low noise amplifier into an extremely fully waterproof enclosure and when connected to a GPS receiver with 3.0~5VDC antenna power, it can provide excellent antenna signal amplification and out-band filtering with rejection for that receiver at 3V~5 DC input Voltage.

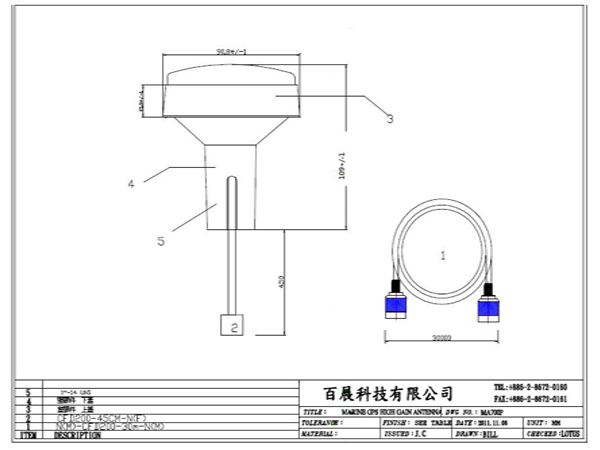

| Antenna Element | |
|---|---|
| Center Frequency | 1575.42 MHz +/-1.023 MHz |
| Polarization | R.H.C.P. (Right Handed Circular Polarization) |
| Absolute Gain @ Zenith | +5 dBi typical Based on 70×70mm ground plane |
| Gain @ 10° Elevation | -1 dBi typical |
| Axial Ratio | 3 dB max. |
| Output VSWR | 1.5:1 Typ. |
| Output Impedance | 50 ohm |
| Low Noise Amplifier | |
| Center Frequency | 1575.42 MHz +/- 1.023 MHz |
| Power Gain | 38db(3V) / 45db(5V) (Without cable +25℃±10℃) |
| Bandwidth | 10 MHz min. |
| Noise Figure | 1.6 Typ. |
| Outer Band Attenuation | 20 dB min. @ Fo +/-50 MHz |
| Supply Voltages | 3.0~5.0V DC |
| Current Consumption | 21mA@ 3.0V DC,25mA@ 5.0V DC |
| VSWR | 1.5 max. |
| Output Impedance | 50 ohm |
| Overall Performance: (antenna element, LNA & coax cable) | |
| Center Frequency | 1575.42 MHz |
| Gain | 38db(3V) / 45db(5V) (Without cable +25°C±10°C) |
| Noise Figure | 2.0 max. |
| Bandwidth | 10 MHz min. |
| Axial Ratio | 3 dB max. |
| VSWR | 1.5 max. |
| Output Impedance | 50 ohm |
| Environmental Conditions | |
| Operating Temperature | -30°C to +80°C |
| Storage Temperature | -40°C to +100°C |
| Relative Humidity | 40% to 95% non-condensing |
| Water Resistance | 100% waterproof |
| Physical Constructions | |
| Dimensions | Antenna： 90.8mm(Dia.) × 109mm(H) |
| Weight | 150 grams (without cable) |
| Base Mounting | FB3A SUS L-MOUNTING 1”-14 UNS |
| Cable & Connector | |
| RF |
45CM-N(F) |
| Cable Pulling strength | 12Kg for 5sec. |
| Connector available | N(F) (standard), SMA(F) / TNC(F) other types (optional) |
*This specification is subject to change without prior notice / Data Updated: NOV 01, 2012
.

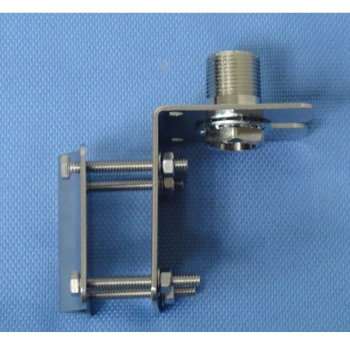

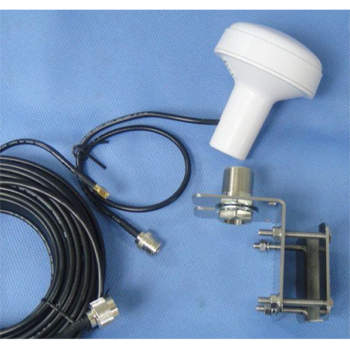

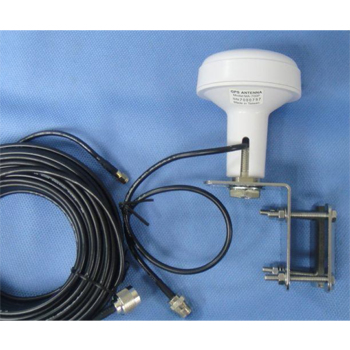

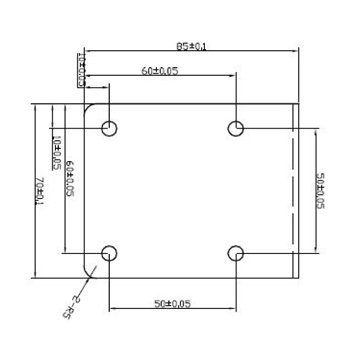

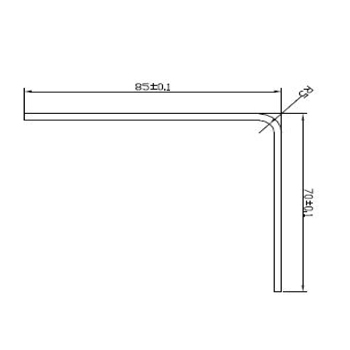

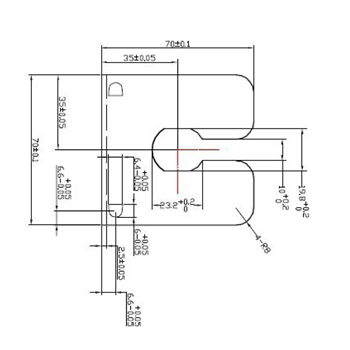

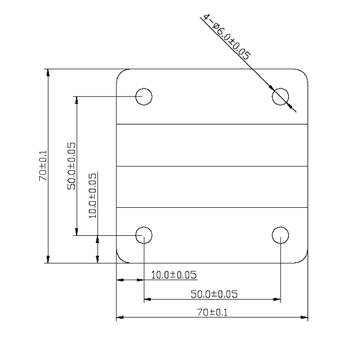

Marine Antenna Base mounting: FB-3A
1"-14 UNS threaded mast SUS304/C3604
Locks on the truck rear-view mirror or on iron stand or flagpole
