GUA-650P
 |
|
Product Description
FOR Marine UHF Radio & GPS NAVIGATION SYSTEM
Product Specifications
GPS antenna Specifications: GA65P
| Antenna Element | |
|---|---|
| Center Frequency | 1575.42 MHz +/-1.023 MHz |
| Polarization | R.H.C.P. (Right Handed Circular Polarization) |
| Absolute Gain @ Zenith | +5 dBi typical Based on 70×70mm ground plane |
| Gain @ 10o Elevation | -1 dBi typical |
| Axial Ratio | 3 dB max. |
| Output VSWR | 1.5:1 Typ. |
| Output Impedance | 50 ohm |
| Low Noise Amplifier | |
| Center Frequency | 1575.42 MHz +/- 1.023 MHz |
| Power Gain | 38db(3V) / 45db(5V) (Without cable +25°C±10°C) |
| Bandwidth | 10 MHz min. |
| Noise Figure | 1.6 Typ. |
| Outer Band Attenuation | 20 dB min. @ Fo +/-50 MHz |
| Supply Voltages | 3.0~5.0V DC |
| Current Consumption | 21mA@ 3.0V DC,25mA@ 5.0V DC |
| VSWR | 1.5 max. |
| Output Impedance | 50 ohm |
| Overall Performance: (antenna element, LNA & coax cable) | |
| Center Frequency | 1575.42 MHz |
| Gain | 38db(3V) / 45db(5V) (Without cable +25°C±10°C) |
| Noise Figure | 2.0 max. |
| Bandwidth | 10 MHz min. |
| Axial Ratio | 3 dB max. |
| VSWR | 1.5 max. |
| Output Impedance | 50 ohm |
| Environmental Conditions | |
| Operating Temperature | -30°C to +80°C |
| Storage Temperature | -40°C to +100°C |
| Relative Humidity | 40% to 95% non-condensing |
| Water Resistance | 100% waterproof |
| Physical Constructions | |
| Dimensions | Antenna： 60mm(Dia.) × 18.5mm(H) |
| Weight | 65 grams (without cable) |
| Standard Mounting | Bulkhead mount with 0.8 inch threaded wing nut (standard accessory). |
| Cable & Connector | |
| RF Connector |
SMA(F) or TNC(F) |
| Cable Pulling strength | 6 Kg @ 5sec. molded plastic on connector end for strain relief. |

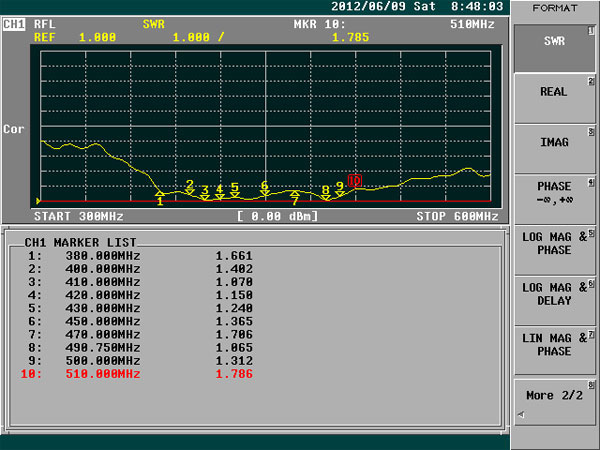

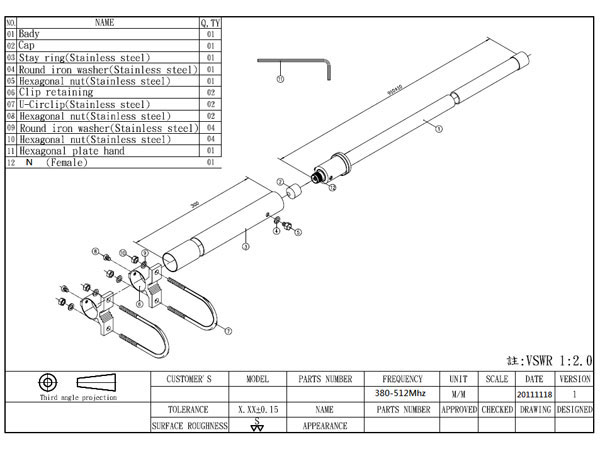

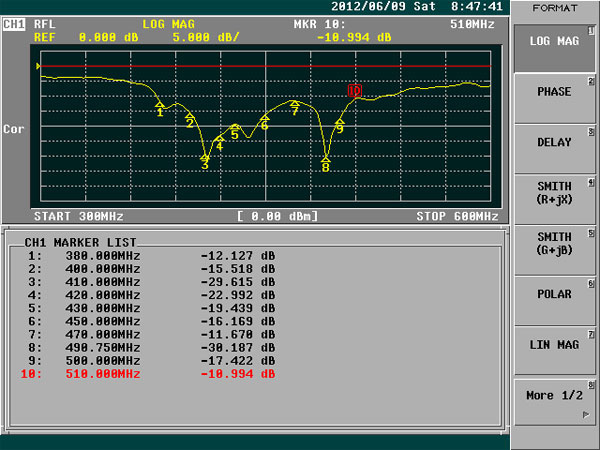

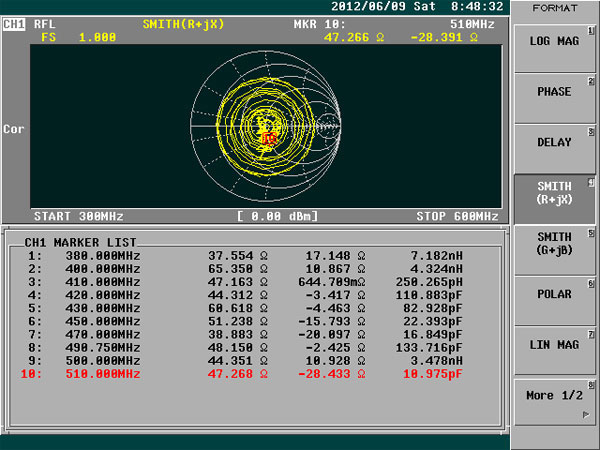

Outside UHF Base Antenna
Model: MUA-100A
Specification:
- Antenna Type: Base Antenna
- Frequency: 380~512MHz
- Impedance: 50 Ohm
- Polarisation: Verticle
- SWR: 2.0:1
- Max. Power: 50W
Mechanical:
- Materials: Fiber
- Color: White
- Total Height:910m/m ±10
- Weight: 1050g
Appearance:

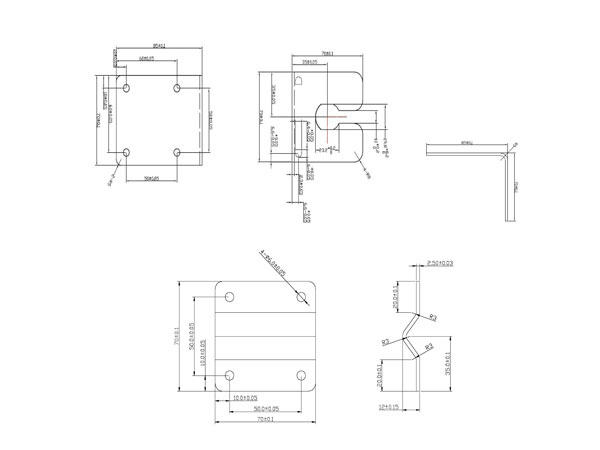

SUS L-Mounting
Madel : FB-6
Size :
