GVA-150AL

Product Description

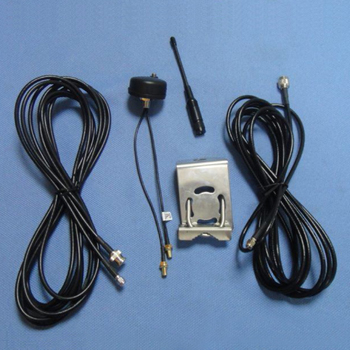

AIS system & boat manages the double frequency GPS/VHF Antenna

Product Specifications

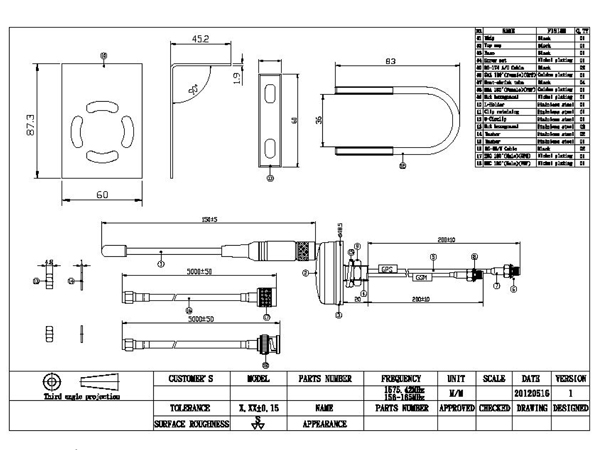

Physical Condition
Constructions:	Polycarbonate radome, rubber-O-ring between top radome and screw base for waterproof
Dimensions:	47.2mm(Dia.) x 38mm(H)
Weight:	640 grams (with 5M cable & connector & L-mounting ).
Color:	Standard in Black
Mounting:	Bulkhead mount with 0.46 inch threaded wing nut.
Cable & Connector
RF cable:	20CM-RG174 & SMA(M)-RG58-5M-TNC(M)
Pulling strength:	6 Kg @ 5sec. molded plastic on connector end for strain relief.
Connector available:	SMA(F)
Optional:	Universal Connector Adapter (FME to TNC/BNC/SMA/SMB/MCX)
Antenna Element
Center Frequency:	1575.42 MHz +/-1.023 MHz
Polarization:	R.H.C.P. (Right Handed Circular Polarization).
Absolute Gain @ Zenith:	+5 dBi typical.
Gain @ 10o Elevation:	-1 dBi typical.
Axial Ratio:	3 dB max.
Output VSWR:	1.5 max
Output Impedance:	50 ohm
Low Noise Amplifier
Center Frequency:	1575.42 MHz
Power Gain:	28db +/-4.5db
Bandwidth:	10MHz min.
Noise Figure:	1.5 min.
Outer Band Attenuation:	3 dB max.
Supply Voltages:	2.5~5.5V DC
Current Consumption:	2.5V : 6.6mA Typ. 3V: 8.6mA Typ. 4V: 12.6mA Typ. 5V: 16.6mA Typ.
Output Impedance:	50W ohm

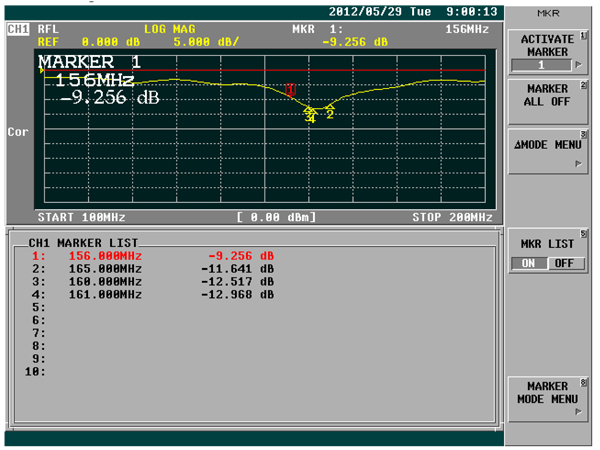

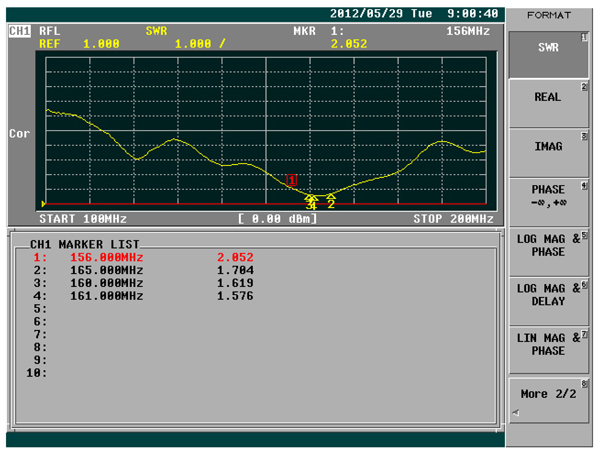

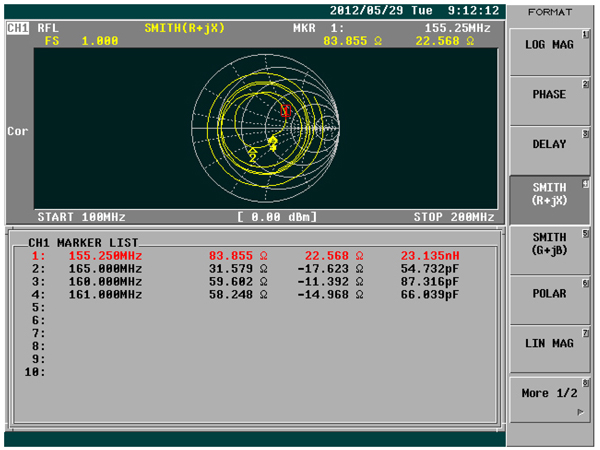

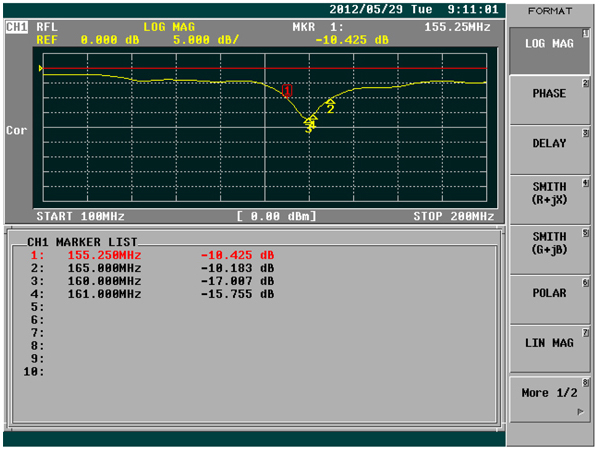

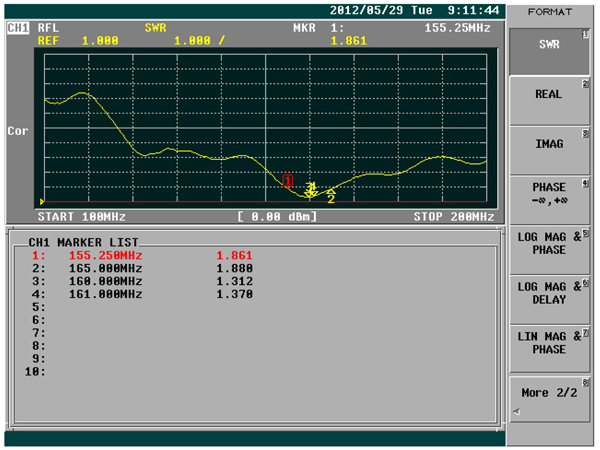

Overall Performance: (antenna element, LNA & coax cable)
Center Frequency:	1575.42 Mhz.
Gain:	At 90o 30 ± 4.5dBi-(cable loss) Note:1 Mounted on the 60mm x 60mm square ground plane
Noise Figure:	2.0 max.
Axial Ratio:	3 dB max.
Bandwidth:	2MHz min.
VSWR:	2.0 max.
Output Impedance:	50W ohm
Environmental
Operating Temperature:	-40°C~ +85°C.
Storage Temperature:	-50°C~ +90°C.
Relative Humidity:	95% non-condensing.
