GSM-100B
 |
|
Product Description

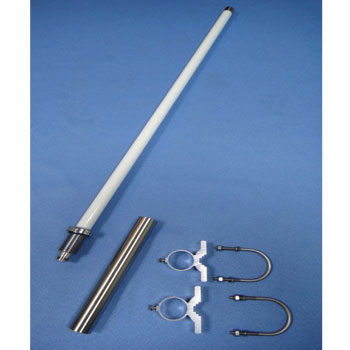

Fiber Glass Antenna
850/900/1800/1900/2170Mhz
Product Specifications
Electronical:
| Frequency range: | 850/900/1800/1900/2170Mhz |
|---|---|
| Gain: | 7~9dBi |

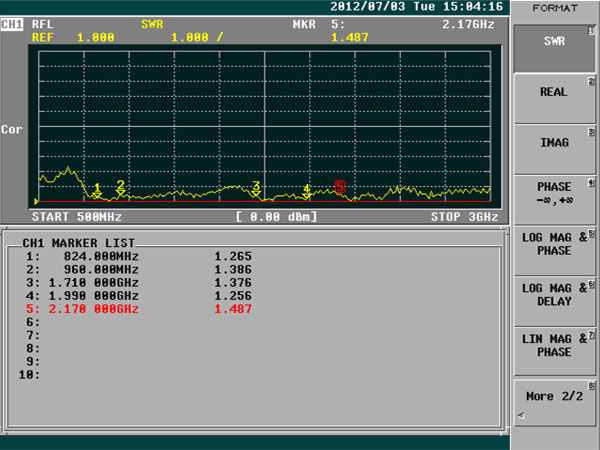

| V.S.W.R: | |

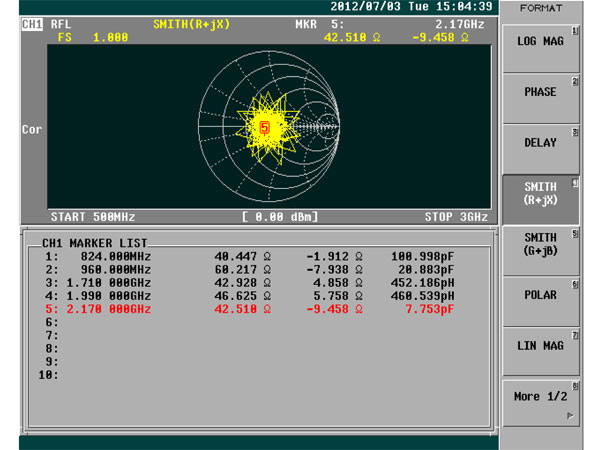

| Impedence: | 50 ohm |
| Connector: | N Type Female |

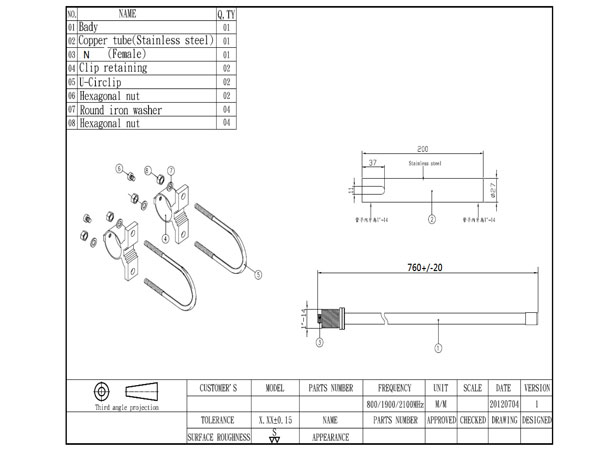

| Dimension: | 760mm +/-10 x OD20mm |
| Weight: | 620g |
| Polarization : | vertical |
| Power handling : | 50W |
| Colour : | white |
| Rated wind velocity : | 60m/s |
| Working Temperature : | -40~80°C |
| Lightning Protection : | Direct Ground |

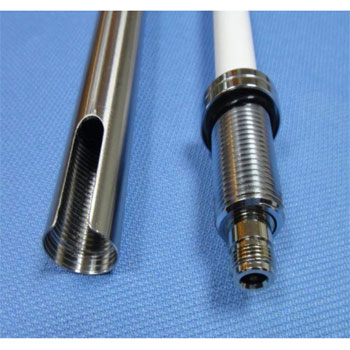

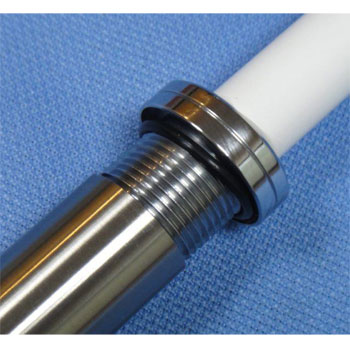

| Touch Type : | 1"-14 threaded (M) 200mm SUS TUBE 1"-14 threaded (F) X2 & SUS U-Circlip x 2 |
*This specification is subject to change without prior notice
