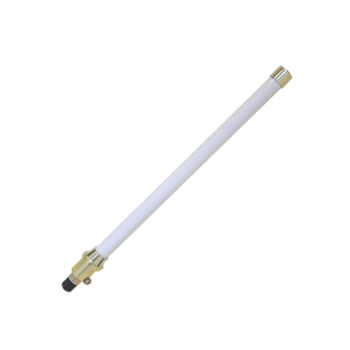

TH-2409
 |
|
Product Specifications
Electrical Specification
| Frequency | 2.4~2.5GHz |
|---|---|
| Part Number | TH-2409 |
| Polarization | Linear |
| V.S.W.R. | 1 : 1.3 Max |
| Impedance | 50 OHMS !O5￡[ |
| Gain | 9 dBi |
| Power handling | 15W Max |
| Front to back ratio | N/A |
| HPBW / horizontal | 360￠X |
| HPBW / vertical | 10￠X |
| Rated Wind | 3.0 lbs. (1.4 kg) |
| Operating Temperature | -20￠XC~60￠XC |
Mechanical Specification
| Connector Type | N Type Female |
|---|---|
| Length | ￡p35 x 420mm |
| Weight | 430g |
| Radome color | white |
| Radome material | glass fiber |
