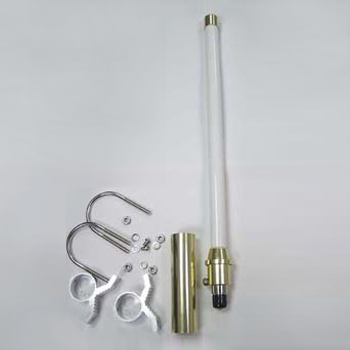

TH-580
 |
|
Product Specifications
Electrical Specification
| Frequency | 5.1~5.9GHz |
|---|---|
| Part Number | TH-580-12 |
| Polarization | Linear |
| V.S.W.R. | 1 : 1.3 Max |
| Impedance | 50 OHMS ±5Ω |
| Gain | 12 dBi |
| Power handling | 10W Max |
| Front to back ratio | N/A |
| HPBW / horizontal | 360° |
| HPBW / vertical | 6° |
| Rated Wind | 3.0 lbs. (1.4 kg) |
| Operating Temperature | -20°C~60°C |
Mechanical Specification
| Connector Type | N Type Female |
|---|---|
| Length | φ35 x 420mm |
| Weight | 430g |
| Radome color | white |
| Radome material | glass fiber |
