GMA-650L
 |
|
Product Description
FOR Base Antenna or Marine GPS/GSM System
GA65 FB6-SUS L-MOUNTING
Product Specifications

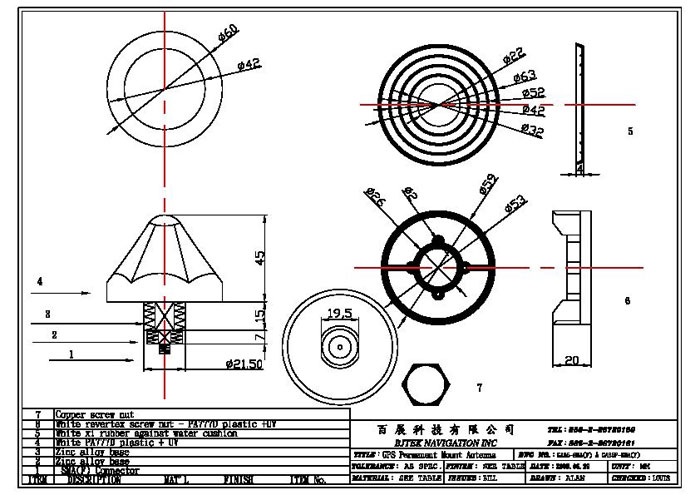

GPS Antenna Specifications: GA65
| PHYSICALCONDITION | |
|---|---|
| Constructions: | Polycarbonateradome,detachable cable/connector for easy mount, rubber-O-ringbetween top radome and screw base for waterproof |
| Dimensions: | 60mm(Dia.)x 45mm(H) |
| Weight: | 65grams(w/o cable & connector). |
| Color: | Whiteor Black(Optional) |
| Mounting: | Bulkhead mount with0.8 inch threaded wing nut (standard accessory). |
| Cable& Connector | |
| RFcable: | SMA(M)-10MRG58 -TNC(M) or Optional |
| Pullingstrength: | 6 Kg @ 5sec. moldedplastic on connector end for strain relief. |
| Connector available: | SMA(F) |
| AntennaElement | |
| Center Frequency: | 1575.42 MHz +/-1.023MHz |
| Polarization: | R.H.C.P. (Right HandedCircular Polarization). |
| Absolute Gain @Zenith: | +5 dBi typical. |
| Gain@ 10oElevation: | -1 dBi typical. |
| Axial Ratio: | 3dB max. |
| Output VSWR: | 2.0 |
| Output Impedance: | 50 ohm |
| LowNoise Amplifier | |
| Center Frequency: | 1575.42+/- 1.023 MHz |
| Power Gain: | 28db +/-3db |
| Bandwidth: | 10MHz min. @S11-10dB |
| Noise Figure: | 1.5 |
| Outer BandAttenuation: | 3 dB max. |
| SupplyVoltages: | 2.5~5.5VDC. |
| Current Consumption: | at2.5V 6.6mA Typ. at3.0V 8.6mA Typ. at4.0V 12.6mA Typ. at5.0V 16.6mA Typ. |
| Filter | 20dB 25dB @ fo+/- 50MHz 30dB 35dB @ fo+/- 100MHz * fo=1575.42MHz |
| OverallPerformance: (antenna element, LNA & coax cable) | |
| CenterFrequency: | 1575.42+/- 1.023 MHz |
| Gain: | At90overtical to sky 30 ± 4.5dBi (cableloss) Note:1 Mountedon the 60mm x 60mm square ground plane |
| NoiseFigure: | 1.5max. |
| AxialRatio: | 3dB max. |
| Bandwidth: | 10MHz min. @S11-10dB |
| VSWR: | 2.0max. |
| OutputImpedance: | 50ohm |
| Environmental | |
| OperatingTemperature: | -40oC~+100oC. |
| StorageTemperature: | -40oC~+100oC. |
| RelativeHumidity: | 95%non-condensing. |
| WaterResistance: | 100%waterproof. IPX6 |
| Frequencyrange: | 850/900/1800/1900/2170Mhz |
|---|---|
| Gain: | 3dBi |

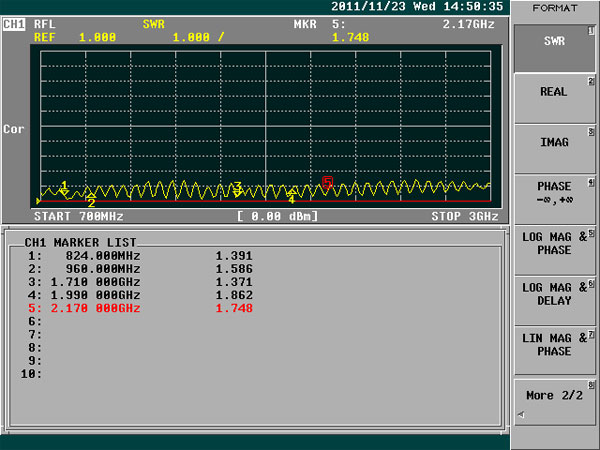

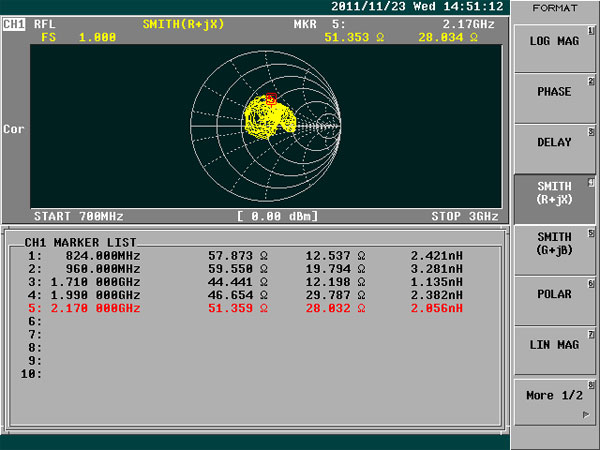

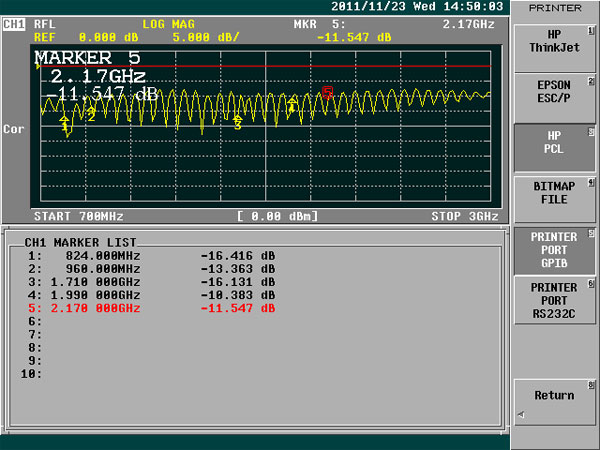

| V.S.W.R: | < 2.0 |
| Impedence: | 50ohm |
| Connector: | SMAmale |
| Dimension: | 320mm+/-10 x OD16.2mm |
| Weight: | 88g |
| Polarization : | vertical |
| Powerhandling : | 50W |
| Colour : | white |
| Rated windvelocity : | 60m/s |
| WorkingTemperature : | -40~60°C |
| LightningProtection : | Direct Ground |
*This specification is subject to change without prior notice / Data Updated: July.07, 2009
