GVU-620P
 |
|
Product Description
FOR Marine VHF Radio & GPS Navigation
Product Specifications
GPS antenna Specifications: GA62P
| Specifications | |
|---|---|
| Antenna Element | |
| Center Frequency | 1575.42 MHz +/-1.023 MHz |
| Polarization | R.H.C.P. (Right Handed Circular Polarization) |
| Absolute Gain @ Zenith | +5 dBi typical Based on 70×70mm ground plane |
| Gain @ 10° Elevation | -1 dBi typical |
| Axial Ratio | 3 dB max. |
| Output VSWR | 1.5:1 Typ. |
| Output Impedance | 50 ohm |
| Low Noise Amplifier | |
| Center Frequency | 1575.42 MHz +/- 1.023 MHz |
| Power Gain | 38db(3V) / 45db(5V) (Without cable +25°C±10°C) |
| Bandwidth | 10 MHz min. |
| Noise Figure | 1.6 Typ. |
| Outer Band Attenuation | 20 dB min. @ Fo +/-50 MHz |
| Supply Voltages | 3.0~5.0V DC |
| Current Consumption | 21mA@ 3.0V DC,25mA@ 5.0V DC |
| VSWR | 1.5 max. |
| Output Impedance | 50 ohm |
| Overall Performance: (antenna element, LNA & coax cable) | |
| Center Frequency | 1575.42 MHz |
| Gain | 38db(3V) / 45db(5V) (Without cable +25°C±10°C) |
| Noise Figure | 2.0 max. |
| Bandwidth | 10 MHz min. |
| Axial Ratio | 3 dB max. |
| VSWR | 1.5 max. |
| Output Impedance | 50 ohm |
| Environmental Conditions | |
| Operating Temperature | -30°C to +80°C |
| Storage Temperature | -40°C to +100°C |
| Relative Humidity | 40% to 95% non-condensing |
| Water Resistance | 100% waterproof |

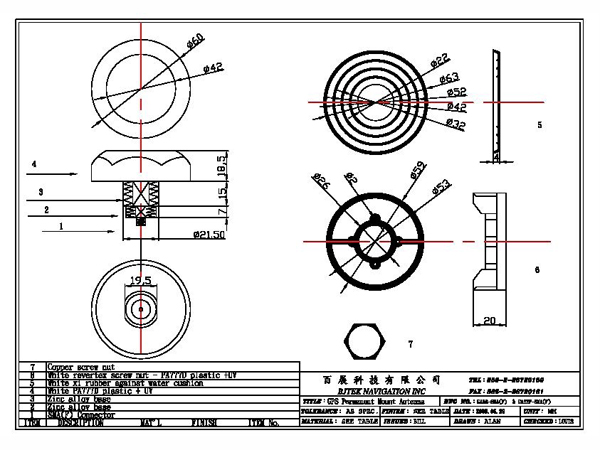

| Physical Constructions | |
| Dimensions | Antenna： 60mm(Dia.) × 18.5mm(H) |
| Weight | 65 grams (without cable) |
| Standard Mounting | Bulkhead mount with 0.8 inch threaded wing nut (standard accessory). |
| Cable & Connector | |
| RF Connector |
SMA(F) or TNC(F) |
| Cable Pulling strength | 6 Kg @ 5sec. molded plastic on connector end for strain relief. |
Marine VHF Antenna Specifications: UVA-1400
Marine UHF/VHF Dual Band Antenna.
This document provides a Sleeve Dipole Antenna design .

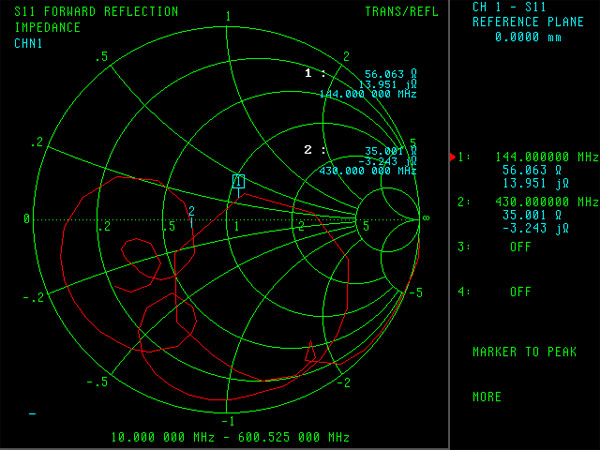

Electrical Properties
| Parameter | Description |
|---|---|
| Frequency Band | 144 / 430 MHz |
| Nominal Impedance | 50 ohm |
| Polarization | Vertical |

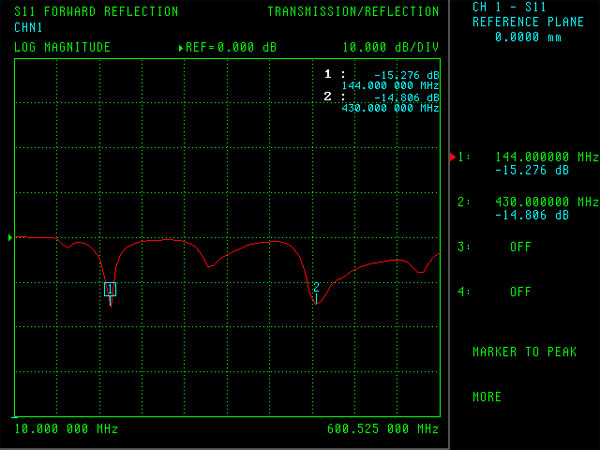

| V.S.W.R | 1.5:1 |
| Power | 100W |
| Note: Gain includes the cable loss | |

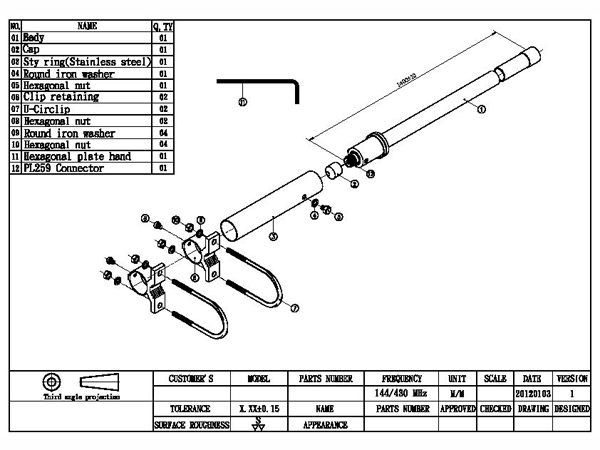

Mechanical Properties
| Parameter | Description |
|---|---|
| Antenna Type | Omni-Directional Antenna |
| Material | Fiberglass |
| Touch Type | Screw Type |
| Connector Type | PL259 connector (Female) |
| Antenna Dimensions | 1400 mm ±10 |
| Antenna Color | White |
| Operating Temperature Range | -20°C~+60°C |
| Storage Temperature Range | -30°C~+70°C |
FB6 : SUS Base mounting
