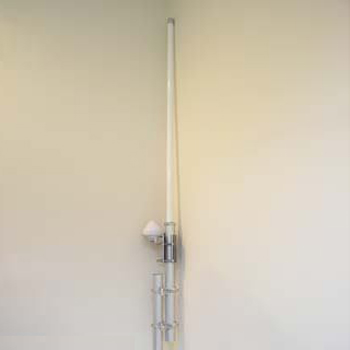

GVU-650
 |
|
Product Description
FOR Marine VHF Radio & GPS Navigation
Product Specifications

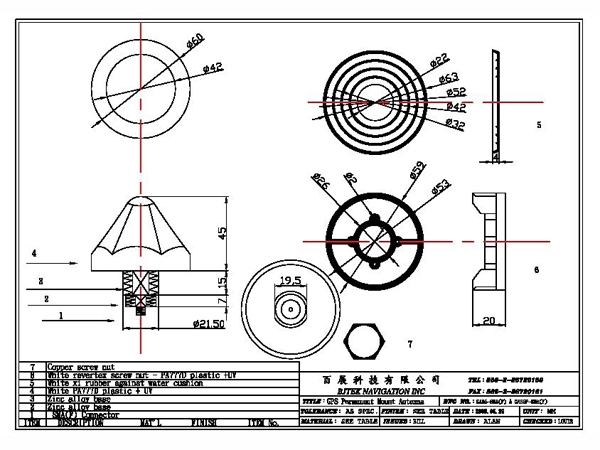

GPS Antenna Specifications: GA65
| Physical Condition | |
|---|---|
| Constructions: | Polycarbonate radome,detachable cable/connector for easy mount, rubber-O-ring between top radome and screw base for waterproof |
| Dimensions: | 60mm(Dia.) x 45mm(H) |
| Weight: | 65grams (w/o cable & connector). |
| Color: | Standard in ivory white, other colours available upon request. |
| Mounting: | Bulkhead mount with 0.8 inch threaded wing nut (standard accessory). |
| Cable & Connector | |
| RF cable: | SMA(M)-10M RG58 -TNC(M) or Optional |
| Pulling strength: | 6 Kg @ 5sec. molded plastic on connector end for strain relief. |
| Connector | SMA(F) |
| Antenna Element | |
| Center Frequency: | 1575.42 MHz +/-1.023 MHz |
| Polarization: | R.H.C.P. (Right Handed Circular Polarization). |
| Absolute Gain @ Zenith: | +5 dBi typical. |
| Gain @ 10° Elevation: | -1 dBi typical. |
| Axial Ratio: | 3 dB max. |
| Output VSWR: | 2.0 |
| Output Impedance: | 50 ohm |
| Low Noise Amplifier | |
| Center Frequency: | 1575.42 +/- 1.023 MHz |
| Power Gain: | 28 db +/-3db |
| Bandwidth: | 10 MHz min. @S11 ≤ -10 dB |
| Noise Figure: | 1.5 |
| Outer Band Attenuation: | 3 dB max. |
| Supply Voltages: | 2.5~5.5V DC. |
| Current Consumption: | at 2.5V 6.6mA Typ. at 3.0V 8.6mA Typ. at 4.0V 12.6mA Typ. at 5.0V 16.6mA Typ. |
| Filter: | 20dB 25dB @ fo+/- 50MHz 30dB 35dB @ fo+/- 100MHz * fo=1575.42MHz |
| Overall Performance: (antenna element, LNA & coax cable) | |
| Center Frequency: | 1575.42 +/- 1.023 MHz |
| Gain: | At 90° vertical to sky 30 ± 4.5dBi (cable loss) Note:1 Mounted on the 60mm x 60mm square ground plane |
| Noise Figure: | 1.5 max. |
| Axial Ratio: | 3 dB max. |
| Bandwidth: | 10 MHz min. @S11 ≤ -10 dB |
| VSWR: | 2.0 max. |
| Output Impedance: | 50 ohm |
| Environmental | |
| Operating Temperature: | -40°C~ +100°C. |
| Storage Temperature: | -40°C~ +100°C. |
| Relative Humidity: | 95% non-condensing. |
| Water Resistance: | 100% waterproof. |
Marine VHF Antenna Specifications: UVA-1400
Marine UHF/VHF Dual Band Antenna.
This document provides a Sleeve Dipole Antenna design .

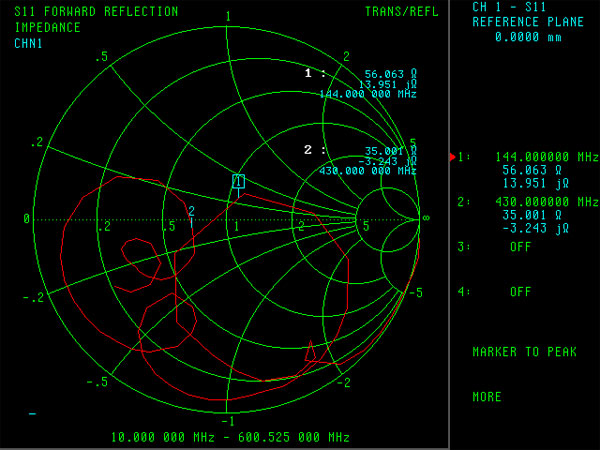

Electrical Properties
| Parameter | Description |
|---|---|
| Frequency Band | 144 / 430 MHz |
| Nominal Impedance | 50 ohm |
| Polarization | Vertical |

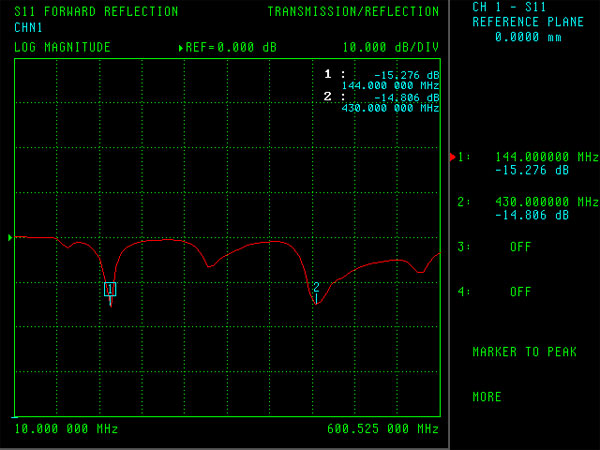

| V.S.W.R | 1.5:1 |
| Power | 100W |
| Note: Gain includes the cable loss | |

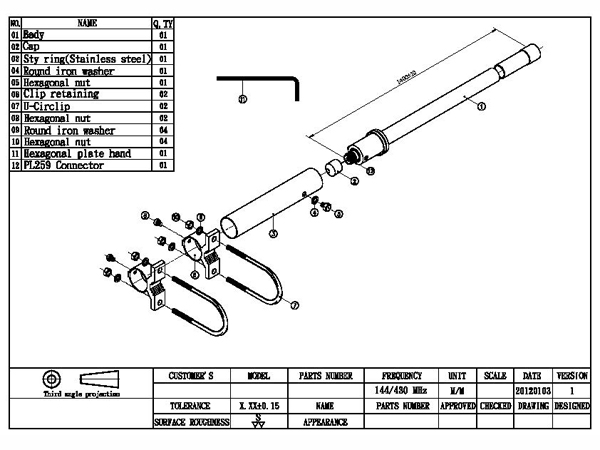

Mechanical Properties
| Parameter | Description |
|---|---|
| Antenna Type | Omni-Directional Antenna |
| Material | Fiberglass |
| Touch Type | Screw Type |
| Connector Type | PL259 connector (Female) |
| Antenna Dimensions | 1400 mm ±10 |
| Antenna Color | White |
| Operating Temperature Range | -20°C~+60°C |
| Storage Temperature Range | -30°C~+70°C |
*This specification is subject to change without prior notice / Data Updated: FEB.07, 2012
FB6 : SUS Base mounting
