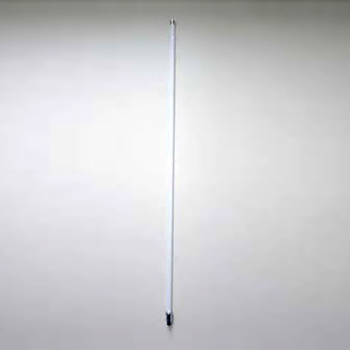

TP-915A
 |
|
Product Specifications
Electrical Specification
| Frequency | 902~928MHz |
|---|---|
| Part Number | TP-915A |
| Polarization | Linear |
| V.S.W.R. | 2.5:1 |
| Impedance | 50 OHMS ±5Ω |
| Gain | 8~9 dBi |
| Power handling | 15W Max |
| Front to back ratio | N/A |
| HPBW / horizontal | 360° |
| HPBW / vertical | 10° |
| Rated Wind | 3.0 lbs. (1.4 kg) |
| Operating Temperature | -20°C~60°C |
Mechanical Specification
| Connector Type | N Type Male |
|---|---|
| Length | Φ20 x 1340mm |
| Weight | 250g |
| Radome color | white |
| Radome material | Polyvinyl chloride |
