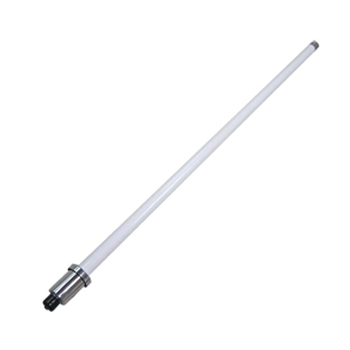

GSM-100

Outside GSM Antenna
GSM-100
Outside GSM Antenna
Product Description
  • Fiber Glass Antenna, 850/900/1800/1900/2170Mhz
  • Below is a table summarizing the antenna design specification.
Product Specifications
MODEL: GSM-100
Frequency range 850/900/1800/1900/2170Mhz
Gain 7~9dBi
V.S.W.R
Impedence 50 ohm
Connector N Type Female
Dimension 756mm ±10 x OD20mm
Weight: 0.76Kg
Polarization vertical
Power handling 50W
Colour white
Rated wind velocity 60m/s
Working Temperature -40°C~60°C
Lightning Protection Direct Ground

This specification is subject to change without prior notice.
