UVA-1400
 |
|
Product Specifications
Electrical Properties
| Parameter | Description |
|---|---|
| Frequency Band | 144 / 430 MHz |

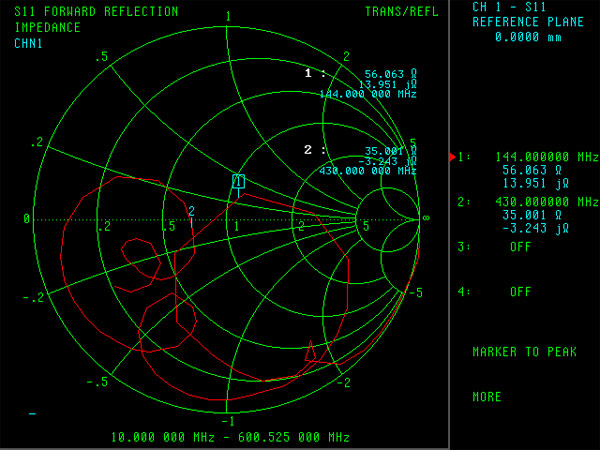

| Nominal Impedance | 50 ohm |
| Polarization | Vertical |

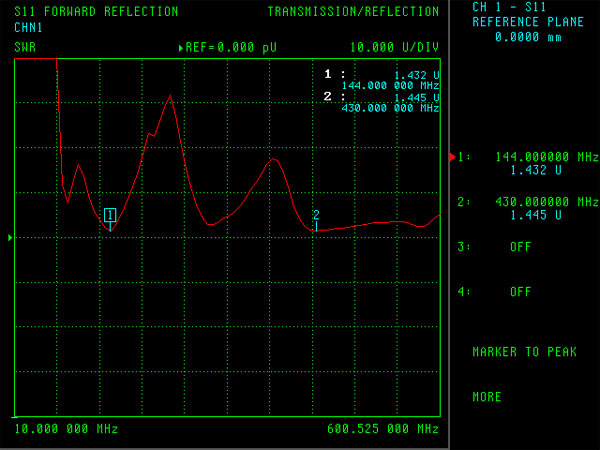

| V.S.W.R | 1.5:1 |
| Power | 100W |
| Note: Gain includes the cable loss | |

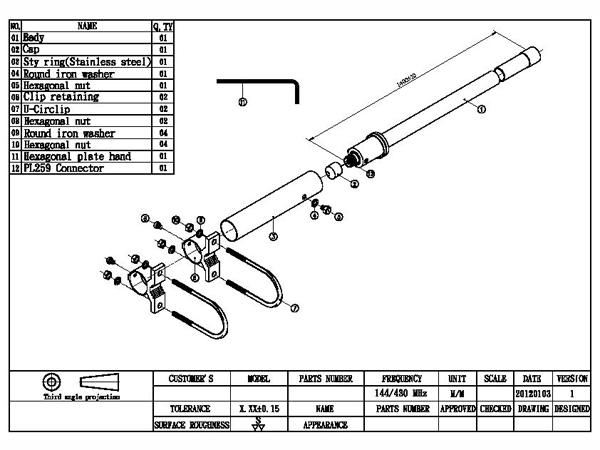

Mechanical Properties
| Parameter | Description |
|---|---|
| Antenna Type | Omni-Directional Antenna |
| Material | Fiberglass |
| Touch Type | Screw Type |
| Connector Type | PL259 connector (Female) |
| Antenna Dimensions | 1400 mm ±10 |
| Antenna Color | White |
| Operating Temperature Range | -20°C~+60°C |
| Storage Temperature Range | -30°C~+70°C |
