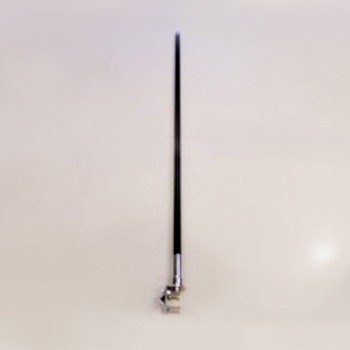

VUA-2701
 |
|
Product Description
Coil and radiator are enclosed in FRP tubing to assure low SWR in all weather. VHA2701 can work about any where with radialless design. DC ground structure for protecting equipment.
Product Specifications
| VHF/UHF | |
|---|---|
| Fr | 144 ~ 148 Mhz / 430~450 Mhz |
| Gain | 3 dB / 5.5db |
| Configuration | 1/2 wave / 5/8 wave |
| Impedence | 50 ohm |
| Connector | PL259(P) with RG58 cable |
| Dimension | 20mm(Dia.) x 1020mm (L) (without Fixed base ) |
| Weight | 570g (With Fixed base) |
